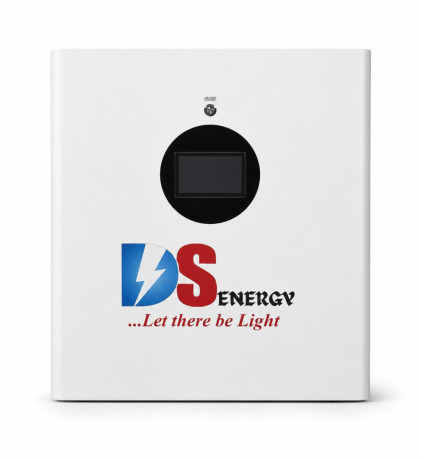

DS ENERGY 5KW DS LITHIUM ION BATTERY

DS ENERGY 5kWh Lithium Iron Phosphate (LiFePO4) battery featuring Grade A Tesla cells, a touchscreen monitor, an integrated DC circuit breaker, remote monitoring, and 6-unit parallel scaling represents a premium, high-safety energy storage system designed for residential and commercial solar setups.

 System Overview

This battery system is a high-performance energy storage unit typically configured at 48V or 51.2V to achieve its 5kWh capacity (100Ah). By utilizing Grade A cells (often manufactured in facilities associated with Tesla's supply chain or utilizing similar high-density chemistry standards), the battery ensures maximum efficiency, low internal resistance, and minimal degradation over time.

Key Features & Component Breakdown

- Grade A Cells: These are the highest tier of manufactured cells, ensuring uniform capacity, optimal thermal stability, and a long lifespan of 6,000+ charge cycles at 80% Depth of Discharge (DoD).

- LiFePO4 Chemistry: Lithium Iron Phosphate is widely recognized as the safest lithium-ion chemistry available. It features an exceptionally low risk of thermal runaway (fire) and contains no toxic heavy metals like cobalt.

- Smart Touchscreen Monitor: An on-unit LCD touchscreen provides real-time diagnostic data directly on the battery enclosure. [16, 17]

- Remote Monitoring Function: Features integrated Wi-Fi, Bluetooth, or GPRS modules allowing users to track battery health, State of Charge (SoC), voltage, and historical data via a smartphone app or web portal.

- DC Circuit Breaker Protector: A built-in, heavy-duty molded case circuit breaker (MCCB) or specialized DC breaker acts as a physical safety switch, protecting the internal electronics from severe overcurrent or short-circuits.

- Parallel Expansion (Up to 6 Units): An advanced internal Battery Management System (BMS) with RS485/CAN communication ports allows up to 6 batteries to be linked together. This expands total capacity seamlessly from 5kWh up to 30kWh.

Technical Specifications Matrix

| Parameter | Technical Detail / Value |

|---|---|

| Nominal Energy Capacity | 5.12 kWh |

| Nominal Voltage | 51.2 V (Standard for 48V solar inverters) |

| Nominal Capacity | 100 Ah |

| Cell Type | Prismatic LiFePO4 (Grade A, Tesla-supply tier) |

| Cycle Life | ≥ 6,000 cycles @ 80% DoD, 25°C |

| Design Life | 10 to 15 years |

| Standard Charge Current | 50 A (0.5C rate) |

| Maximum Charge Current | 100 A (1C rate) |

| Standard Discharge Current | 50 A |

| Maximum Continuous Discharge | 100 A |

| Peak Discharge Current | 150A - 200A (for 3 to 5 seconds to handle appliance surge) |

| Parallel Scalability | Up to 6 units max (Total 30.72 kWh capacity) |

| Communication Protocols | CAN, RS485, RS232 (Compatible with most tier-1 hybrid inverters) |

| Built-in Protection | DC Circuit Breaker, Over-charge, Over-discharge, Over-current, Short-circuit, Cell imbalance, High/Low temperature protection |

| Touchscreen Display Data | Voltage, Current, SoC, State of Health (SoH), Individual cell voltages, Temperature, Error codes |

| Remote Connectivity | Wi-Fi / Bluetooth / Cloud App Monitoring |

| Operating Temperature | Charge: 0°C to 55°C | Discharge: -20°C to 60°C |

Inverter Compatibility & Installation

Thanks to the intelligent BMS communicating via CAN and RS485, this battery system is designed to plug-and-play with major hybrid inverter brands.

When paralleling up to 6 units, the batteries automatically assign master/slave designations via dip switches or the touchscreen interface. This ensures that the entire stack charges and discharges evenly, preventing one battery from doing all the heavy lifting.
